HYM368020S 8M x 36-Bit Dynamic RAM Module

DRAM Module (access time 60 ns) DRAM Module (access time 60 ns) Semiconductor Group 2 HYM 368020S/GS-60 8M × 36-Bit Pin Configuration Pin Names VSS 1 DQ0 2 DQ18 3 DQ1 4 DQ19 5 DQ2 6 DQ20 7 DQ3 8 DQ21 9 VCC 10 N.C. 11 A0 12 A1 13 A2 14 A3 15 A4 16 A5 17 A6 18 A10 19 DQ4 20 DQ22 21 DQ5 22 DQ23 23.

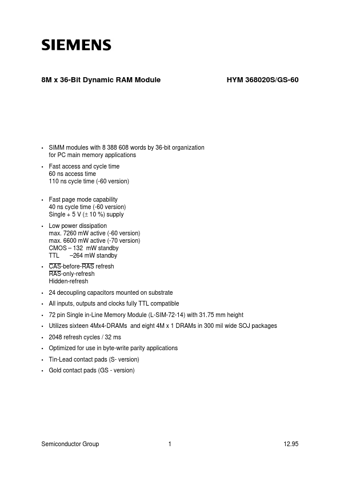

8M x 36-Bit Dynamic RAM Module HYM 368020S/GS-60 SIMM modules with 8 388 608 words by 36-bit organization for PC main memory applications Fast access and cycle time 60 ns access time 110 ns cycle time (-60 version) Fast page mode capability 40 ns cycle time (-60 version) Single + 5 V (± 10 %) supply Low power dissipation max. 7260 mW active (-60 version) max. 6600 mW active (-70 version) CMOS 132 mW standby TTL 264 mW standby CAS-before-RAS refresh RAS-only-refres.
