HYS64V1000GS-10

3.3V 1M x 64-Bit SDRAM Module 3.3V 1M x 72-Bit SDRAM Module

HYS64V1000GS-10 General Description

100 Mhz 1M x 64 SDRAM module 83 Mhz 1M x 64 SDRAM module 66 MHz 1M x 64 SDRAM module 100 MHz 1M x 72 SDRAM module 83 Mhz 1M x 72 SDRAM module 66 Mhz 1M x 72 SDRAM module Pin Names A0-A10 A11 (BS) DQ0 - DQ63 CB0-CB7 RAS CAS WE CKE CLK0 - CLK3 DQMB0 - DQMB7 CS0 - CS3 Vcc Vss SCL SDA N.C. Address Inp.

HYS64V1000GS-10 Datasheet (68.05 KB)

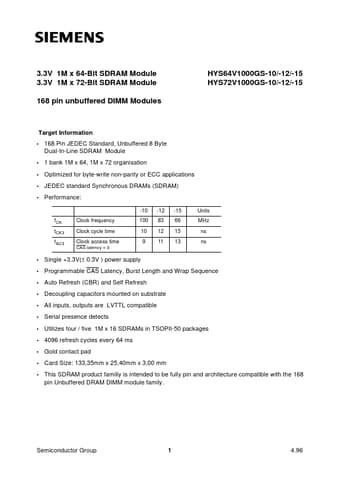

Preview of HYS64V1000GS-10 PDF

Datasheet Details

Part number:

HYS64V1000GS-10

Manufacturer:

Siemens

File Size:

68.05 KB

Description:

3.3v 1m x 64-bit sdram module 3.3v 1m x 72-bit sdram module.
3.3V 1M x 64-Bit SDRAM Module 3.3V 1M x 72-Bit SDRAM Module 168 pin unbuffered DIMM Modules HYS64V1000GS-10/-12/-15 HYS72V1000GS-10/-12/-15 Target I.
