LY5480 - Wide-Angle LED

Siemens Semiconductor Group (now Infineon)

Datasheet Details

Part number	LY5480
Manufacturer	Siemens Semiconductor Group (now Infineon)
File Size	432.17 KB
Description	Wide-Angle LED
Datasheet	LY5480 Datasheet

Overview

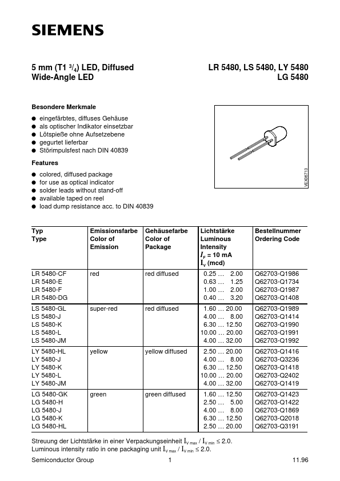

5 mm (T1 3/4) LED, Diffused Wide-Angle LED LR 5480, LS 5480, LY 5480 LG 5480 Besondere Merkmale q eingefärbtes, diffuses Gehäuse q als optischer Indikator einsetzbar q Lötspieße ohne Aufsetzebene q gegurtet lieferbar q.

Key Features

q colored, diffused package q for use as optical indicator q solder leads without stand-off q available taped on reel q load dump resistance acc. to DIN 40839 VEX06713 Typ Type LR 5480-CF LR 5480-E LR 5480-F LR 5480-DG LS 5480-GL LS 5480-J LS 5480-K LS 5480-L LS 5480-JM LY 5480-HL LY 5480-J LY 5480-K LY 5480-L LY 5480-JM LG 5480-GK LG 5480-H LG 5480-J LG 5480-K LG 5480-HL Emissionsfarbe Gehäusefarbe Color of Color of Emission Package red red diffused super-red red diffused yellow yel.
