RX-2C - TOY CAR REMOTE CONTROLLER

Product Overview

Silan Microelectronics

Part number	RX-2C
Manufacturer	Silan Microelectronics
File Size	726.33 KB
Description	TOY CAR REMOTE CONTROLLER
Datasheet	RX-2C Datasheet

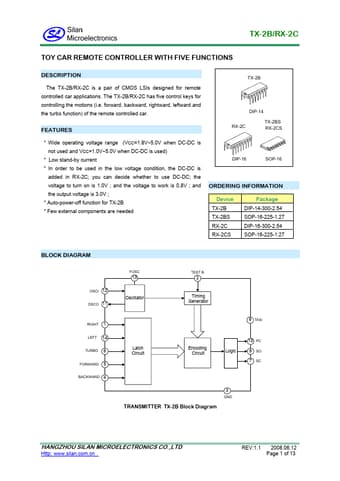

Additional preview pages of the RX-2C datasheet.

The TX-2B/RX-2C is a pair of CMOS LSIs designed for remote controlled car applications.

TX-2B DIP-14 RX-2C TX-2BS RX-2CS.
Wide operating voltage range (VCC=1.8V~5.0V when DC-DC is not used and VCC=1.0V~5.0V when DC-DC is used).
Low stand-by current.
In order to be used in the low voltage condition, the DC-DC is added in RX-2C; you can decide whether to use DC-DC; the voltage to turn on is 1.0V ; and the voltage to work is 0.8V ; and the output voltage is 3.0V ;.
Auto-power-off function for TX-2B.
Few external components are needed DIP-16 SOP-16 ORDE.
