SA1117 - 1A LDO VOLTAGE REGULATOR

Datasheet Summary

Description

The SA1117 is a positive low voltage dropout regulator, voltage dropout is only 1.2V at 1A.

SA1117 has two versions: the fixed version and the adjustable version.

Features

1% accuracy for fixed output VOUT while the voltage is 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and the adjustable output VOUT.
2% output accuracy for fixed version 1.2V.
Low Dropout Voltage: 1.2V at 1A output current.
Current Limiting.
Thermal Shutdown.
Temperature Range: -40°C to 125°C.

Datasheet Details

Part number	SA1117
Manufacturer	Silan Microelectronics
File Size	334.45 KB
Description	1A LDO VOLTAGE REGULATOR
Datasheet	SA1117 Datasheet

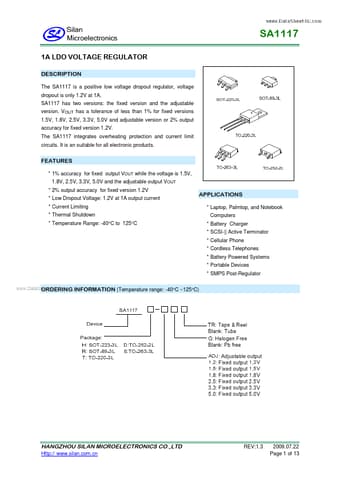

Additional preview pages of the SA1117 datasheet.

📁 Similar Datasheet

SA1110 - Intel StrongARM SA-1110 Microprocessor (Intel Corporation)

SA11 - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSORS (MIC)

SA11 - Transient Voltage Suppression (TVS) Diodes (Crydom)

SA11 - Transient Voltage Suppressors (Microsemi)

SA11 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (Pan Jit International)

SA11 - 500W TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)

SA11 - Transient Voltage Suppressors (Crownpo)

SA11 - TRANSIENT VOLTAGE SUPPRESSOR (GME)

SA11 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR (SEMITECH)

SA11 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR (General Semiconductor)

Full PDF Text Transcription

Click to expand full text

SA1117 1A LDO VOLTAGE REGULATOR DESCRIPTION The SA1117 is a positive low voltage dropout regulator, voltage dropout is only 1.2V at 1A. SA1117 has two versions: the fixed version and the adjustable version. VOUT has a tolerance of less than 1% for fixed versions 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and adjustable version or 2% output accuracy for fixed version 1.2V. The SA1117 integrates overheating protection and current limit circuits. It is an suitable for all electronic products. FEATURES * 1% accuracy for fixed output VOUT while the voltage is 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and the adjustable output VOUT * 2% output accuracy for fixed version 1.2V * Low Dropout Voltage: 1.
