SA1117B - 800mA LDO VOLTAGE REGULATOR

SA1117B Description

SA1117B 800 mA LDO VOLTAGE REGULATOR .
The SA1117B is a positive low voltage dropout regulator; voltage dropout is only 1.

SA1117B Features

* include thermal shutdown and current limiting. It is suitable for all electronic products. SOT-223-3L FEATURES
* 1.5% output accuracy for fixed versions 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and adjustable version
* 2% output accuracy for fixed version 1.2V
* Low Dropout Voltage: 1.2V at 800mA o

SA1117B Applications

* Laptop, Palmtop, and Notebook Computers
* Battery Charger
* SCSI-II Active Terminator
* Cellular Phone
* Cordless Telephones
* Battery Powered Systems
* Portable Instrumentation
* SMPS Post-Regulator www. DataSheet4U. com ORDERING INFORMATION (Temperature range: -40

📥 Download Datasheet

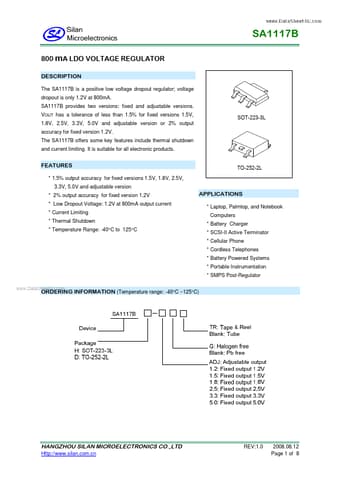

Preview of SA1117B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA1117B
Manufacturer
Silan Microelectronics
File Size
244.13 KB
Datasheet
SA1117B_SilanMicroelectronics.pdf
Description
800mA LDO VOLTAGE REGULATOR
