SA7454H Datasheet, Amplifier, Silan Microelectronics

SA7454H Features

  • Amplifier
  • High output power: 6 + 6W @ THD=10%, RL=4Ω,VCC=14.4V
  • Fixed gain
  • Good power supply ripple rejection
  • Standby and Mute functions
  • Low ON/OF

PDF File Details

Part number:

SA7454H

Manufacturer:

Silan Microelectronics

File Size:

333.52kb

Download:

📄 Datasheet

Description:

2 x 6w audio power amplifier. SA7454 is a Class AB dual audio power amplifier. It adopts HSIP-9 or DIP-18IH-300-2.54 package. FEATURES

  • High output power

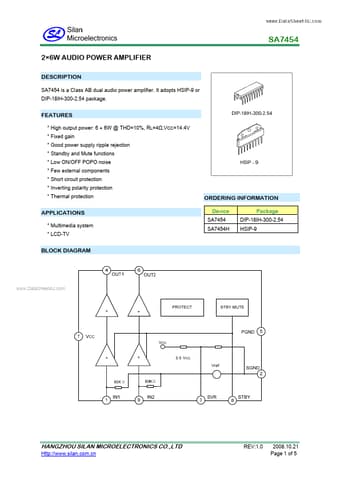

  • Datasheet Preview: SA7454H 📥 Download PDF (333.52kb)
    Page 2 of SA7454H Page 3 of SA7454H

    SA7454H Application

    • Applications
    • Multimedia system
    • LCD-TV ORDERING INFORMATION Device SA7454 SA7454H Package DIP-18IH-300-2.54 HSIP-9 BLOCK DIAG
