SBD10C45F

45V SCHOTTKY RECTIFIER

SBD10C45F Features

* Guard ring for Stress Protection

* High Surge Capacity

* Low power loss , high efficiency

* Low Forward Voltage Drop

* 150C Operating Junction Temperature ORDERING INFORMATION Part No. SBD10C45T SBD10C45F SBD10C45MJ SBD10C45T Package TO-220-3L TO-220F-3L TO-251J-3L TO-220HW

SBD10C45F General Description

SBD10C45T/F/MJ is schottky rectifier fabricated in silicon epitaxial planar technology, Guard ring construction for over voltage protection and enhanced long term reliability. Typical applications are in switching power supplies, converter, free-wheeling diodes, and reverse battery protection. FEAT.

SBD10C45F Datasheet (392.85 KB)

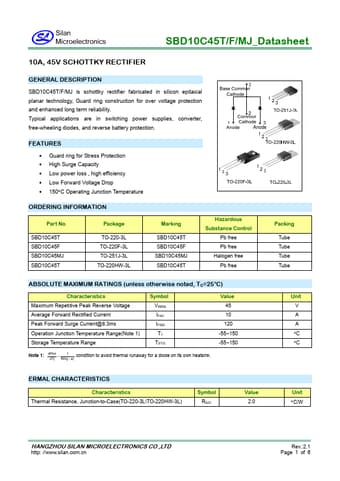

Preview of SBD10C45F PDF

Datasheet Details

Part number:

SBD10C45F

Manufacturer:

Silan Microelectronics

File Size:

392.85 KB

Description:

45v schottky rectifier.
