SBD10C45MJ, SBD10C45T, 45V SCHOTTKY RECTIFIER

SBD10C45T/F/MJ_Datasheet 10A, 45V SCHOTTKY RECTIFIER GENERAL .
SBD10C45T/F/MJ is schottky rectifier fabricated in silicon epitaxial planar technology, Guard ring construction for over voltage protection and enhanc.

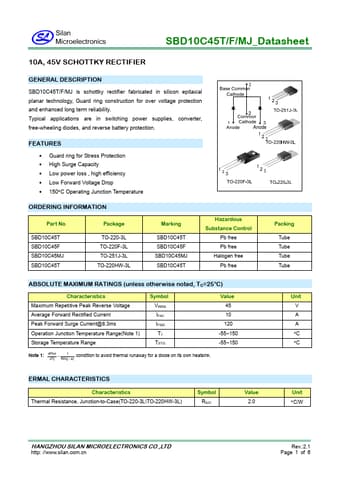

datasheet Preview Page 1 from Datasheet4u.com

SBD10C45T-SilanMicroelectronics.pdf

SBD10C45MJ Datasheet Preview — This datasheet PDF includes multiple part numbers: SBD10C45MJ, SBD10C45T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBD10C45MJ, SBD10C45T

Manufacturer:

Silan Microelectronics

File Size:

392.85 KB

Description:

45V SCHOTTKY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: SBD10C45MJ, SBD10C45T.
Please refer to the document for exact specifications by model.

Features

* Guard ring for Stress Protection
* High Surge Capacity
* Low power loss , high efficiency
* Low Forward Voltage Drop
* 150C Operating Junction Temperature ORDERING INFORMATION Part No. SBD10C45T SBD10C45F SBD10C45MJ SBD10C45T Package TO-220-3L TO-220F-3L TO-251J-3L TO-220HW
