SD9885 Datasheet - Silan Microelectronics

SD9885 I2C-BUS CONTROLLED SINGLE AND MULTISTANDARD ALIGNMENT-FREE IF-PLL DEMODULATORS

The SD9885 is an alignment-free multistandard (PAL and NTSC) vision and sound IF signal PLL demodulator for negative modulation only and FM processing. The SD9886 is an alignment-free multistandard(PAL, SECAM and NTSC) vision and sound IF signal PLLdemodulator for positive and negative modulation,in.

SD9885 Features

* ∗ 5 V supply voltage ∗ Gain controlled wide-band Vision Intermediate Frequency (VIF) amplifier, AC-coupled ∗ Multistandard true synchronous demodulation with active carrier regeneration ∗ Fully integrated VIF Voltage Controlled Oscillator (VCO), alignment-free, frequencies switchable for all negati

SD9885-SilanMicroelectronics.pdf

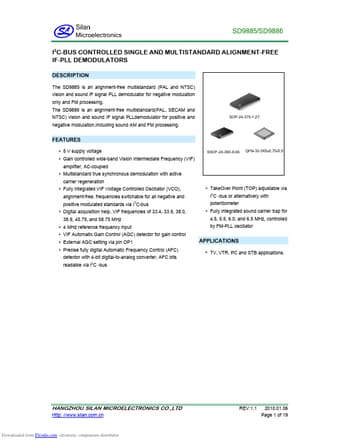

Preview of SD9885 PDF
SD9885 Datasheet Preview Page 2 SD9885 Datasheet Preview Page 3

Datasheet Details

Part number:

SD9885

Manufacturer:

Silan Microelectronics

File Size:

625.59 KB

Description:

I2c-bus controlled single and multistandard alignment-free if-pll demodulators.
