SU0524

4-CHANNEL LOW CAPACITANCE ESD PROTECTION DIODES ARRAY

SU0524 Features

* 4 channels of ESD protection;

* Provides ESD protection to IEC61000-4-2 level 4 - ±17kV air discharge - ±12kV contact discharge;

* Channel I/O to GND capacitance: 0.9pF(Max)

* Channel I/O to I/O capacitance: 0.45pF(Max)

* Low clamping voltage;

* 5V low operating voltage;

SU0524 General Description

The SU0524 is a 4-channel ultra low capacitance rail clamp ESD protection diodes array. Each channel consists of a pair of ESD diodes that steer positive or negative ESD current to either the positive or negative rail. A zener diode is integrated in to the array between the positive and negative su.

SU0524 Datasheet (286.09 KB)

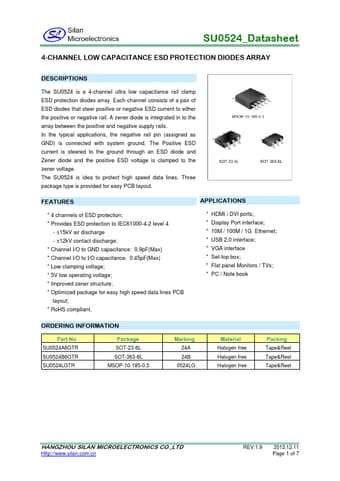

Preview of SU0524 PDF

Datasheet Details

Part number:

SU0524

Manufacturer:

Silan Microelectronics

File Size:

286.09 KB

Description:

4-channel low capacitance esd protection diodes array.
