SVF18N50FJ

500V N-CHANNEL MOSFET

SVF18N50FJ Features

* 18A,500V,RDS(on)(typ.)=0.26@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability NOMENCLATURE ORDERING INFORMATION Part No. SVF18N50F SVF18N50T SVF18N50PN SVF18N50FJ Package TO-220F-3L TO-220-3L TO-3P TO-220FJ-3L Marking SVF18N50F SVF18N50T 18N

SVF18N50FJ General Description

SVF18N50F/T/PN/FJ is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switch.

SVF18N50FJ Datasheet (515.21 KB)

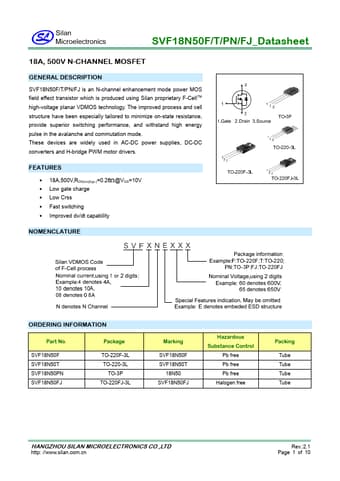

Preview of SVF18N50FJ PDF

Datasheet Details

Part number:

SVF18N50FJ

Manufacturer:

Silan Microelectronics

File Size:

515.21 KB

Description:

500v n-channel mosfet.
