SVF5N60K

600V N-CHANNEL MOSFET

Silan Microelectronics

SVF5N60K Features

* 5A, 600V, RDS(on)(typ)=1.8@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability ORDERING INFORMATION Part No. SVF5N60F SVF5N60DTR SVF5N60K Package TO-220F-3L TO-252-2L TO-262-3L Marking SVF5N60F SVF5N60D SVF5N60K 2 1 1 3 TO-252-2L 3 1.Gate

SVF5N60K General Description

SVF5N60F/D/K is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching p.

SVF5N60K Datasheet (392.28 KB)

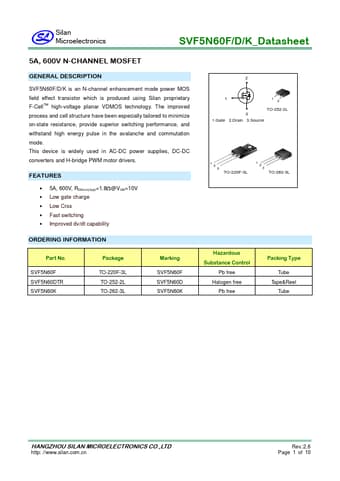

SVF5N60K Datasheet Preview — Preview of SVF5N60K PDF

Datasheet Details

Part number:

SVF5N60K

Manufacturer:

Silan Microelectronics

File Size:

392.28 KB

Description:

600v n-channel mosfet.
