SVF5N60CT, SVF5N60CF Datasheet - Silan Microelectronics

SVF5N60CT 600V N-CHANNEL MOSFET

SVF5N60CF/D/T is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performanc.

SVF5N60CT Features

* 5A, 600V, RDS(on)(typ)=1.8@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability NOMENCLATURE Silan VDMOS Code of F-Cell process Nominal current,using 1 or 2 digits: Example:4 denotes 4A, 10 denotes 10A, 08 denotes 0.8A N denotes N Channel ORDERI

SVF5N60CF-SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SVF5N60CT, SVF5N60CF. Please refer to the document for exact specifications by model.

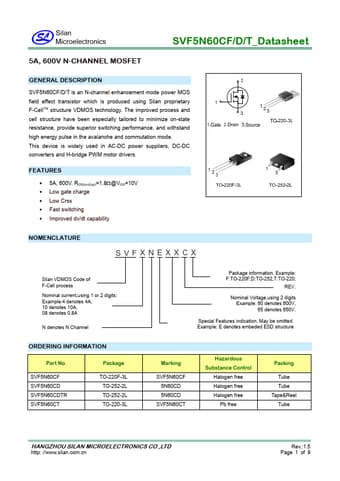

SVF5N60CT Datasheet Preview Page 2 SVF5N60CT Datasheet Preview Page 3

Datasheet Details

Part number:

SVF5N60CT, SVF5N60CF

Manufacturer:

Silan Microelectronics

File Size:

363.92 KB

Description:

600v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVF5N60CT, SVF5N60CF.
Please refer to the document for exact specifications by model.
