SDM03V60DA2 - 600V/3A 3-PHASE FULL-BRIDGE IPM

Product Overview

Silan Semiconductors

Datasheet Details

Part number	SDM03V60DA2
Manufacturer	Silan Semiconductors
File Size	326.91 KB
Description	600V/3A 3-PHASE FULL-BRIDGE IPM
Datasheet	SDM03V60DA2 Datasheet
Note	This datasheet PDF includes multiple part numbers: SDM03V60DA2, SDM03V60DA2-SilanSemiconductors. Please refer to the document for exact specifications by model.

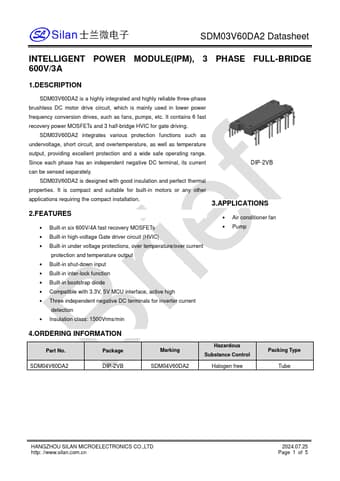

Additional preview pages of the SDM03V60DA2 datasheet.

Product details

Description

SDM03V60DA2 is a highly integrated and highly reliable three-phase brushless DC motor drive circuit, which is mainly used in lower power frequency conversion drives, such as fans, pumps, etc.It contains 6 fast recovery power MOSFETs and 3 half-bridge HVIC for gate driving.SDM03V60DA2 integrates various protection functions such as undervoltage, short circuit, and overtemperature, as well as temperature output, providing excellent protection and a wide safe operating range.Since each p

Features

Air conditioner fan.
Built-in six 600V/4A fast recovery MOSFETs.
Pump.
Built-in high-voltage Gate driver circuit (HVIC).
Built-in under voltage protections, over temperature/over current protection and temperature output.
Built-in shut-down input.
Built-in inter-lock function.
Built-in bootstrap diode.
Compatible with 3.3V, 5V MCU interface, active high.
Three independent negative DC terminals for inverter current detection.
In.
