SLG59M1512V Datasheet - Silego

Ultra-small Dual 1.0A Integrated Power Switch

SLG59M1512V Features

* Two 80 mΩ 1.0 A MOSFETs

* Two integrated VGS Charge Pumps

* User selectable ramp rate with external resistor

* Protected by thermal shutdown

* Integrated Discharge Resistor

* Pb-Free / Halogen-Free / RoHS compliant

* STDFN 8L, 1.0 x 1.6 mm P

SLG59M1512V General Description

The SLG59M1512V is designed for power switching applications. The part comes with two 80 mΩ 1.0 A rated MOSFETs, each controlled by an ON control pin. Each MOSFET’s ramp rate is adjustable depending on the input current level of the ON pin. The product is packaged in an ultra-small 1.6 x 1.0 mm pack.

SLG59M1512V Datasheet (145.34 KB)

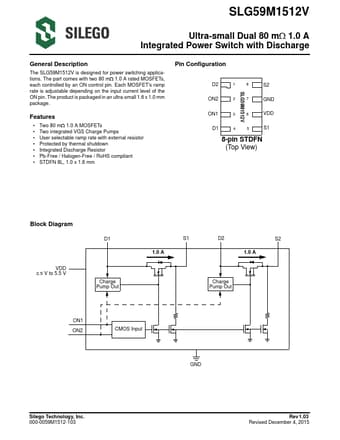

Preview of SLG59M1512V PDF

Datasheet Details

Part number:

SLG59M1512V

Manufacturer:

Silego

File Size:

145.34 KB

Description:

Ultra-small dual 1.0a integrated power switch.
