SLG59M1515V 2.0A Fast Turn On Load Switch

📥 Download Datasheet Datasheet Preview Page 1

Description

SLG59M1515V 20 mΩ, 2.0 A Fast Turn On  Load Switch with Discharge General .
The SLG59M1515V is a 20 mΩ 2.

📥 Download Datasheet

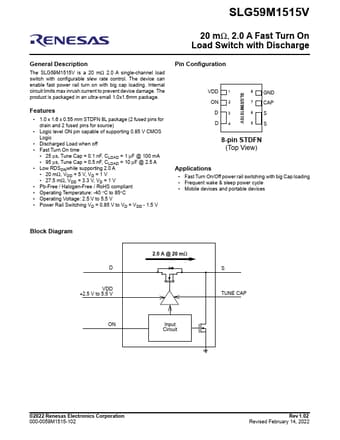

Preview of SLG59M1515V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 1.0 x 1.6 x 0.55 mm STDFN 8L package (2 fused pins for drain and 2 fused pins for source)
* Logic level ON pin capable of supporting 0.85 V CMOS Logic
* Discharged Load when off
* Fast Turn On time
* 25 µs, Tune Cap = 0.1 nF, CLOAD = 1 µF @ 100 mA

Applications

* Fast Turn On/Off power rail switching with big Cap loading
* Frequent wake & sleep power cycle
* Mobile devices and portable devices Block Diagram D VDD +2.5 V to 5.5 V 2.0 A @ 20 mΩ S TUNE CAP ON Input Circuit ©2022 Renesas Electronics Corporation 000-0059M1515-102
