CS0816 - Low Capacitance TVS Protection

CS0816 Description

CS0816 Low Capacitance TVS Protection .
Video Graphics Cards. Desktops, Servers and Notebooks. IEEE 1394 Ports. USB2.

CS0816 Applications

* Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±15kV (Air) ±8kV (Contact) IEC 61000-4-4 (EFT) 40A (5/50 ns) Cable Discharge Event (CDE)
* Small package (2.9mm × 2.8mm × 1.4mm)
* Protects four data lines
* Low capacitance: 0.7pF Typical (I/O-GND)

📥 Download Datasheet

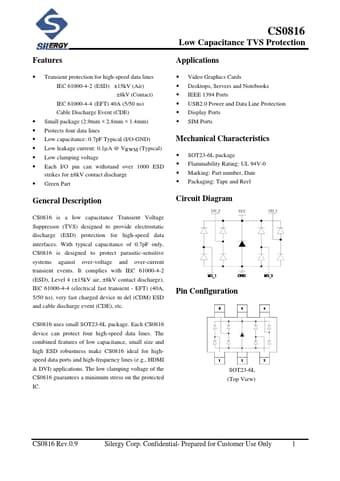

Preview of CS0816 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CS0816
Manufacturer
Silergy
File Size
438.09 KB
Datasheet
CS0816-Silergy.pdf
Description
Low Capacitance TVS Protection
