CS01 - Common Mode Choke

Key Features

  • Low profile package (< 3mm).
  • Attenuates common mode over a broad frequency range.
  • Flat top for pick and place.

📥 Download Datasheet

Datasheet Details

Part number CS01
Manufacturer ice Components
File Size 293.22 KB
Description Common Mode Choke
Datasheet download datasheet CS01 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CS01-05P-2 PROXIMITY SWITCH HIGHLY
CS010EKET12H Hall-effect Current Sensor CHIEFUL
CS01N100A4R Silicon N-Channel Power MOSFET CR Micro
CS01N60ASRD-G Silicon N-Channel Power MOSFET CR Micro
CS005 Thickfilm Resistor electronic sensor

Other Datasheets by ice Components

Part Number Description
CS02 Common Mode Choke
CS03 Common Mode Choke

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

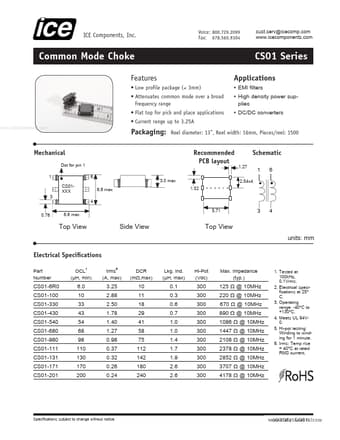

ICE Components, Inc. Voice: 800.729.2099 Fax: 678.560.9304 cust.serv@icecomp.com www.icecomponents.com Common Mode Choke Features • Low profile package (< 3mm) • Attenuates common mode over a broad frequency range • Flat top for pick and place applications • Current range up to 3.25A www.DataSheet4U.com CS01 Series Applications • EMI filters • High density power supplies • DC/DC converters Packaging: Reel diameter: 13”, Reel width: 16mm, Pieces/reel: 1500 Mechanical Dot for pin 1 1 CS01XXX 3 4 8.6 max 6 6.8 max 3.0 max Recommended PCB layout Schematic 1.27 2.54x4 1 6 1.52 0.76 5.71 3 4 Top View Side View Top View units: mm Electrical Specifications Part Number OCL (µH, min) 1 Irms (A, max) 6 DCR (mΩ,max) Lkg. Ind. (µH, max) Hi-Pot (Vdc) Max. Impedance (typ.
