SAT01N24AMA Datasheet - Silergy

LIN bus TVS Protection

SAT01N24AMA Features

* Applications

* Transient protection for high-speed data lines IEC 61000-4-2 (ESD) ±30kV (Air) ±30kV (Contact) IEC 61000-4-5 (Surge) 4A (8/20μs)

* Protects one automotive LIN-bus line

* Low capacitance: 12pF (Typical)

* Low leakage current: 0.01μA @ VRWM (Typical)

* Each I/O pin

SAT01N24AMA General Description

* LIN-bus protection * Automotive applications Mechanical Characteristics * SOD-323 package * Marking: Device code, date code * Packaging: Tape and Reel Circuit Diagram I/O_1 SAT01N24AMA is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic d.

SAT01N24AMA Datasheet (431.81 KB)

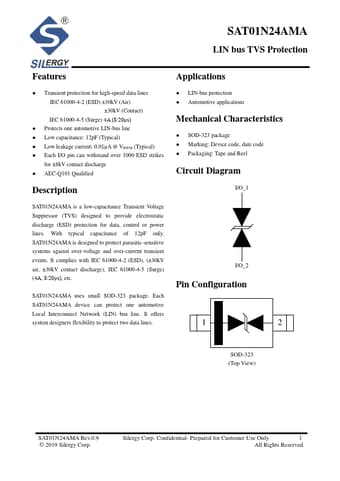

SAT01N24AMA Datasheet Preview — Preview of SAT01N24AMA PDF

Datasheet Details

Part number:

SAT01N24AMA

Manufacturer:

Silergy

File Size:

431.81 KB

Description:

Lin bus tvs protection.
