SAT1600 Datasheet - Solid State Optronic

SAT1600_SolidStateOptronic.pdf

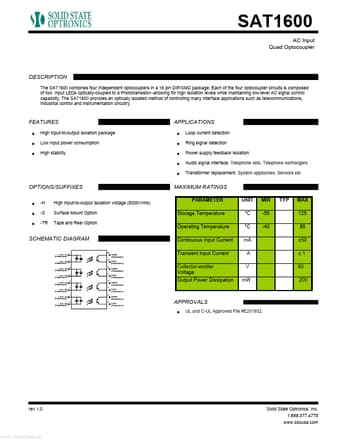

Preview of SAT1600 PDF
SAT1600 Datasheet Preview Page 2 SAT1600 Datasheet Preview Page 3

Datasheet Details

Part number:

SAT1600

Manufacturer:

Solid State Optronic

File Size:

457.40 KB

Description:

Ac input quad optocoupler.

SAT1600, AC Input Quad Optocoupler

The SAT1600 combines four independent optocouplers in a 16 pin DIP/SMD package.

Each of the four optocoupler circuits is composed of two input LEDs optically-coupled to a Phototransistor *allowing for high isolation levels while maintaining low-level AC signal control capability.

The SAT1600

SAT1600 Features

* APPLICATIONS

* High input-to-output isolation package Low input power consumption High stability

* Loop current detection Ring signal detection Power supply feedback isolation Audio signal interface, Telephone sets, Tel
