SAT36A05L05 Datasheet, Protection, Brightking

SAT36A05L05 Features

  • Protection
  • IEC61000-4-2 ESD 15KV Air, 8KV contact compliance
  • SOT-363 surface mount package
  • Protects five unidirectional lines
  • Peak power dissipation of 100W

PDF File Details

Part number:

SAT36A05L05

Manufacturer:

Brightking

File Size:

278.97kb

Download:

📄 Datasheet

Description:

Electrostatic discharged protection. Brightking’s SAT36A05L05 series of Transient Voltage Suppressors (TVS) are designed to protect sensitive electronics from damage or l

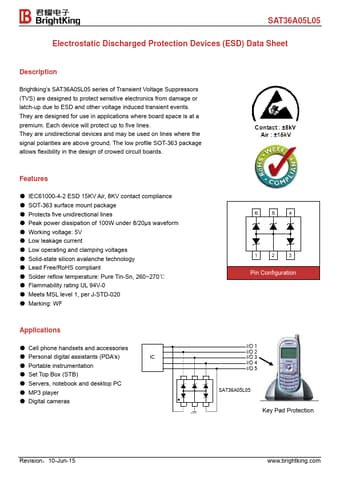

Datasheet Preview: SAT36A05L05 📥 Download PDF (278.97kb)
Page 2 of SAT36A05L05 Page 3 of SAT36A05L05

SAT36A05L05 Application

  • Applications where board space is at a premium. Each device will protect up to five lines. They are unidirectional devices and may be used on lines

TAGS

SAT36A05L05
Electrostatic
Discharged
Protection
Brightking
