SY20466

Synchronous Boost Converter

SY20466 Features

* programmable output-current limit using the ILIM pin. The SY20466/SY20466A is available in a compact QFN2mmx2mm-10 package. Applications Single-cell Lithium or Dual-Cell Nickel BatteryPowered Devices (MP3 players, PDAs, etc.) Features

* 1.8V Minimum Input Voltage

* Adjustable Output Volt

SY20466 General Description

The SY20466/SY20466A high-efficiency synchronous Boost regulator has an input voltage range of 1.8V to 5.25V and can output an output voltage up to 5.5V. The device uses a NMOS MOSFET for the main switch and a PMOS for the synchronous switch. The output is disconnected from the input during.

SY20466 Datasheet (1.46 MB)

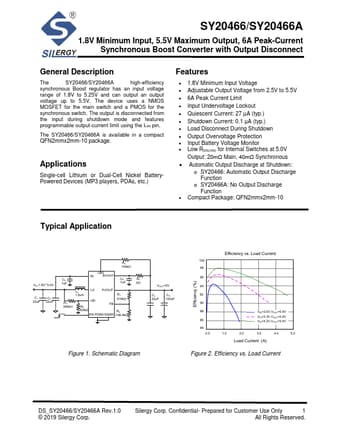

Preview of SY20466 PDF

Datasheet Details

Part number:

SY20466

Manufacturer:

Silergy

File Size:

1.46 MB

Description:

Synchronous boost converter.
