SY24631

36V High-Speed Zero-Drift Voltage Output Current-Shunt Monitor

Silergy

SY24631 Features

* Wide Common-mode Range: 0V to 36V

* Dual Output: Amplifier and Comparator Output

* High-Accuracy Amplifier:

* Offset Voltage: 125μV (Max)

* Offset Voltage Drift: 0.5μV/°C (Max)

* Gain Error: 0.1% (Max)

* Gain Error Drift: 10ppm/°C (Max)

* Available Amplifier Gain: 2

SY24631 General Description

The SY24631 includes a high common-mode, currentsensing amplifier, as well as a high-speed comparator that can be configured to detect over-current conditions. The Current Sense Amplifier is used to accurately measure a small voltage developed across a shunt resistor and provide a proportional analo.

SY24631 Datasheet (436.63 KB)

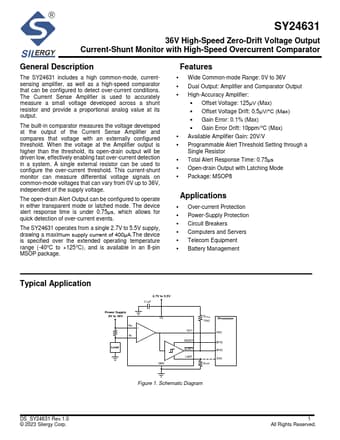

SY24631 Datasheet Preview — Preview of SY24631 PDF

Datasheet Details

Part number:

SY24631

Manufacturer:

Silergy

File Size:

436.63 KB

Description:

36v high-speed zero-drift voltage output current-shunt monitor.
