SY8002E1 - 2A Synchronous Step Down Regulator

SY8002E1 Description

SY8002E1 ` General .
The SY8002E1 is a high efficiency 1.

SY8002E1 Features

* 2.5V to 5.5V Input Voltage Range
* Low RDS(ON) for Internal Switches (Top/Bottom) 130mΩ /85mΩ
* High Switching Frequency 1.5MHz Minimizes the External Components
* Internal Soft-start Limits the Inrush Current
* Forced PWM Operation
* 100% Dropout Operation
* Hiccup for

SY8002E1 Applications

* Set Top Box
* USB Dongle
* Media Player
* Smart phone Typical Applications VIN: 2.5-5.5V CIN 10μF/6.3V IN LX RPG 100k PG FB EN GND L1:1.5µH VOUT:1.8V RH Cff 100k 22pF COUT 10μF/10V RL 49.9k Figure1. Schematic Diagram Inductor and COUT Selection Table VOUT [V] L [µ

📥 Download Datasheet

Preview of SY8002E1 PDF

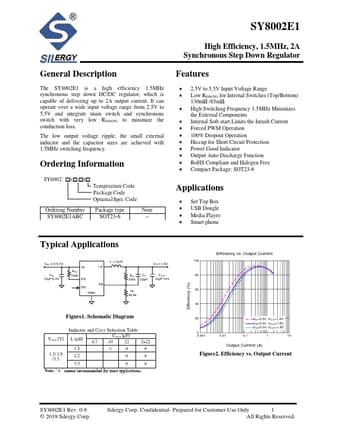

datasheet Preview Page 2 datasheet Preview Page 3
