SY8022

Dual 2.5A/2A Synchronous Step Down Regulator

SY8022 Features

* low Rds(on) for internal switches (top/bottom): SY8022: 150/100mohm, 2.5A SY8022L: 180/120mohm, 2A

* 3-5.5V input voltage range

* 1MHz switching frequency minimizes the external components

* Internal softstart limits the inrush current

* 100% dropout operati

SY8022 General Description

The SY8022 and SY8022L are high-efficiency 1MHz synchronous step-down DC-DC regulator ICs capable of delivering up to 2.5A output currents. The SY8022 operates over a wide input voltage range from 3V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the condu.

SY8022 Datasheet (934.49 KB)

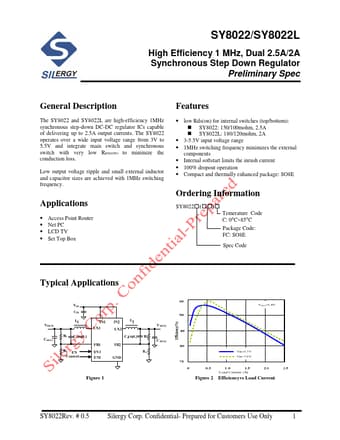

Preview of SY8022 PDF

Datasheet Details

Part number:

SY8022

Manufacturer:

SANY

File Size:

934.49 KB

Description:

Dual 2.5a/2a synchronous step down regulator.
