SY8086

1A Synchronous Step Down Regulator

SY8086 Features

* low Rds(on) for internal switches (top/bottom): 300mohm/300mohm

* 2.5-5.5V input voltage range

* 1.4MHz switching frequency minimizes the external components

* Internal softstart limits the inrush current

* RoHS Compliant and Halogen Free

* Compact p

SY8086 General Description

The SY8086 is a high-efficiency 1.4MHz synchronous step-down DC-DC regulator ICs capable of delivering up to 1A output current. The SY8086 operates over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

SY8086 Datasheet (160.45 KB)

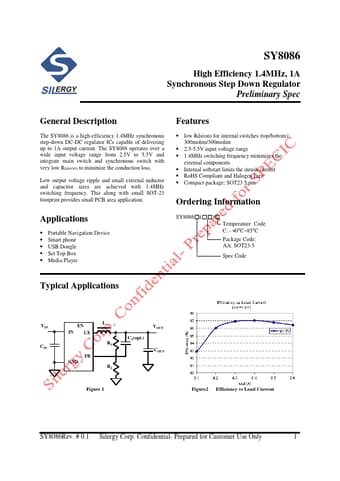

Preview of SY8086 PDF

Datasheet Details

Part number:

SY8086

Manufacturer:

Silergy

File Size:

160.45 KB

Description:

1a synchronous step down regulator.
