SY8208AQNC Datasheet, regulator equivalent, Silergy

SY8208AQNC Features

  • Regulator
  • Low RDS(ON) for internal switches (top/bottom): 20/10 mΩ
  • Wide input voltage range: 4-28V
  • Instant PWM architecture to achieve fast transient responses

PDF File Details

Part number:

SY8208AQNC

Manufacturer:

Silergy

File Size:

4.35MB

Download:

📄 Datasheet

Description:

Synchronous step-down regulator. The SY8208A develops a high efficiency synchronous step-down DC-DC regulator capable of delivering 8A continuous, 16A peak current.

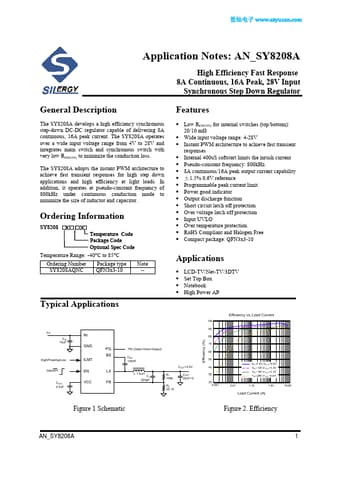

Datasheet Preview: SY8208AQNC 📥 Download PDF (4.35MB)
Page 2 of SY8208AQNC Page 3 of SY8208AQNC

SY8208AQNC Application

  • Applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 800kHz under continuous conduction mode to
