SYR828 Synchronous Step Down Regulator

SYR828 is a high efficiency 2.4MHz synchronous step down DC/DC regulator IC capable of delivering up to 6A output currents. It can operate over a wide input voltage range from 2.6V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The ou.

SYR828 Features

* Input voltage range: 2.6V to 5.5V

* 2.4 MHz switching frequency minimizes the external components

* Typical 65uA quiescent current

* Low RDS(ON) for internal switches (PFET/NFET): 28mΩ/17mΩ

* Programmable Output Voltage: 0.7125V to 1.5V in 12.5mV steps

SYR828 Datasheet (1.11 MB)

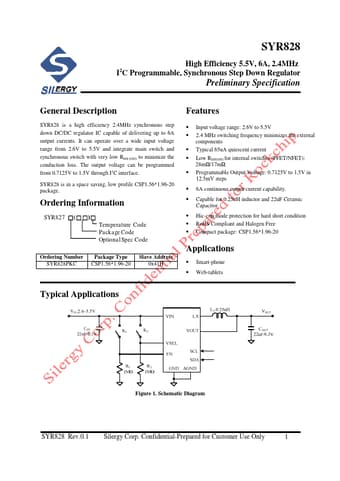

SYR828 Datasheet Preview — Preview of SYR828 PDF

Datasheet Details

Part number:

SYR828

Manufacturer:

Silergy

File Size:

1.11 MB

Description:

Synchronous step down regulator.
