AN650 Si468X SCHEMATICS AND LAYOUT GUIDE

VA supply bypass capacitor, 5.6 pF, 10%, Z5U/X7R VA supply bypass capacitor, 2.2 nF, 10%, Z5U/X7R VIO supply bypass capacitor, 2.2 nF, 10%, Z5U/X7R Note Table 2. Optional BOM Ref Designator L1 L2 C3 C4 C8, C9, C10 C11, C12 C13 Description IND, 0402, SM, 100nH IND, 0402, SM, 68nH VA supply bypass ca.

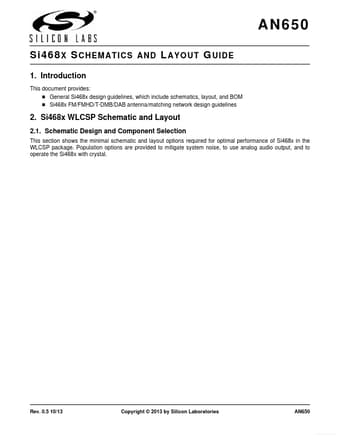

AN650 S i468 X S CHEMATICS AND L AYOUT G UIDE 1. Introduction This document provides: General Si468x design guidelines, which include schematics, layout, and BOM Si468x FM/FMHD/T-DMB/DAB antenna/matching network design guidelines 2. Si468x WLCSP Schematic and Layout 2.1. Schematic Design and Component Selection This section shows the minimal schematic and layout options required for optimal performance of Si468x in the WLCSP package. Population options are provided to mitigate syst.
