EM3588 Integrated ZigBee/802.15.4 System-on-Chip

The Ember EM358x is a fully integrated System-on-Chip that integrates a 2.4 GHz, IEEE 802.15.4-2003-compliant transceiver, 32-bit ARM® CortexTM-M3 microprocessor, flash and RAM memory, and peripherals of use to designers of ZigBee-based systems. The transceiver uses an efficient architecture that ex.

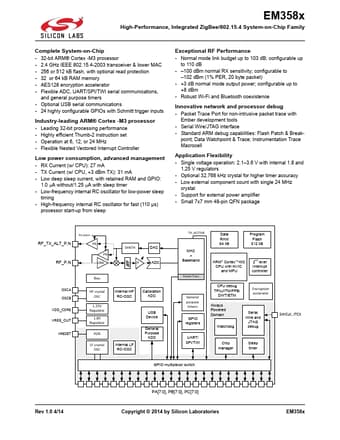

EM358x High-Performance, Integrated ZigBee/802.15.4 System-on-Chip Family Complete System-on-Chip - 32-bit ARM® Cortex -M3 processor - 2.4 GHz IEEE 802.15.4-2003 transceiver & lower MAC - 256 or 512 kB flash, with optional read protection - 32 or 64 kB RAM memory - AES128 encryption accelerator - Flexible ADC, UART/SPI/TWI serial communications, and general purpose timers - Optional USB serial communications - 24 highly configurable GPIOs with Schmitt trigger inputs Industry-leading ARM® Cortex.

EM3588 Features

* that enable long battery life. A highfrequency internal RC oscillator allows the processor core to begin code execution qui

EM3588 Datasheet (8.44 MB)
