EM3021 Ultra Low Power 1-Bit 32-kHz RTC

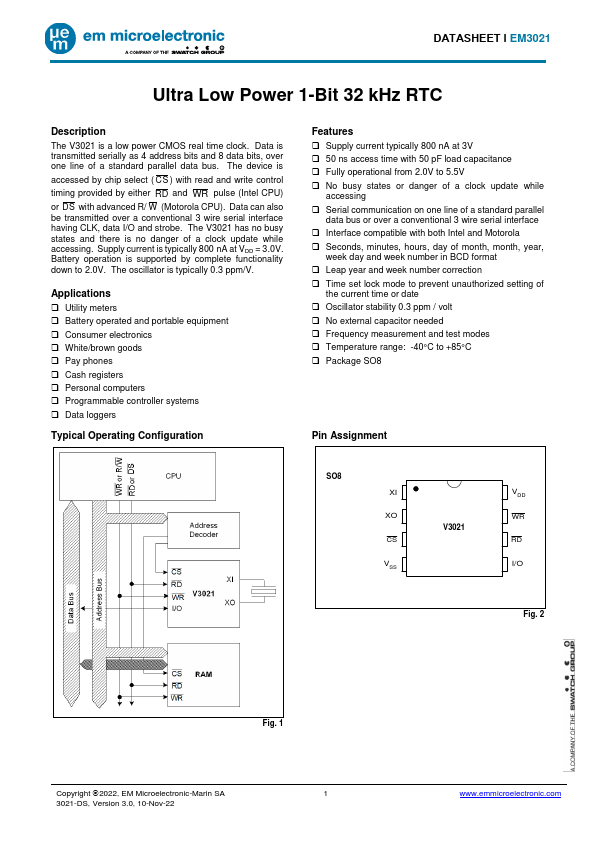

📥 Download Datasheet Datasheet Preview Page 1

Description

DATASHEET Ɩ EM3021 Ultra Low Power 1-Bit 32 kHz RTC .
The V3021 is a low power CMOS real time clock.

📥 Download Datasheet

Preview of EM3021 PDF

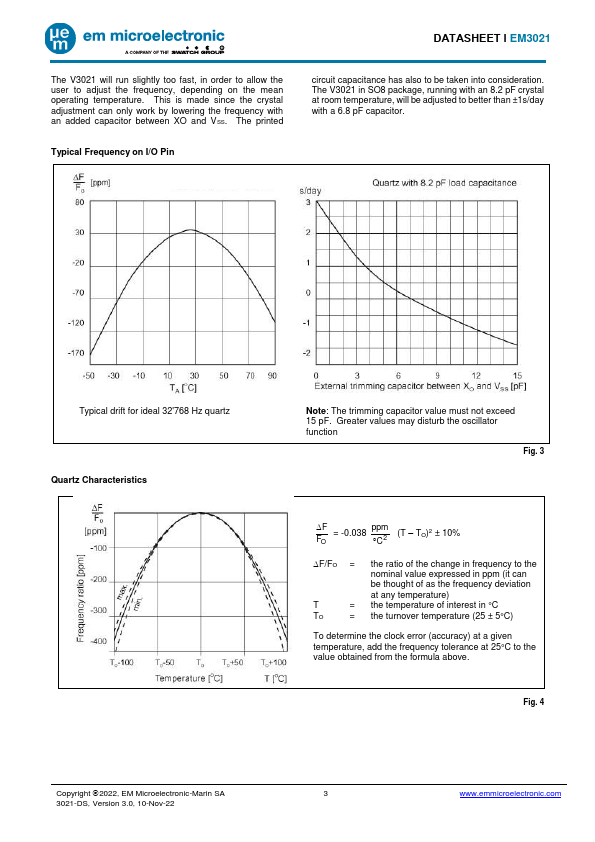

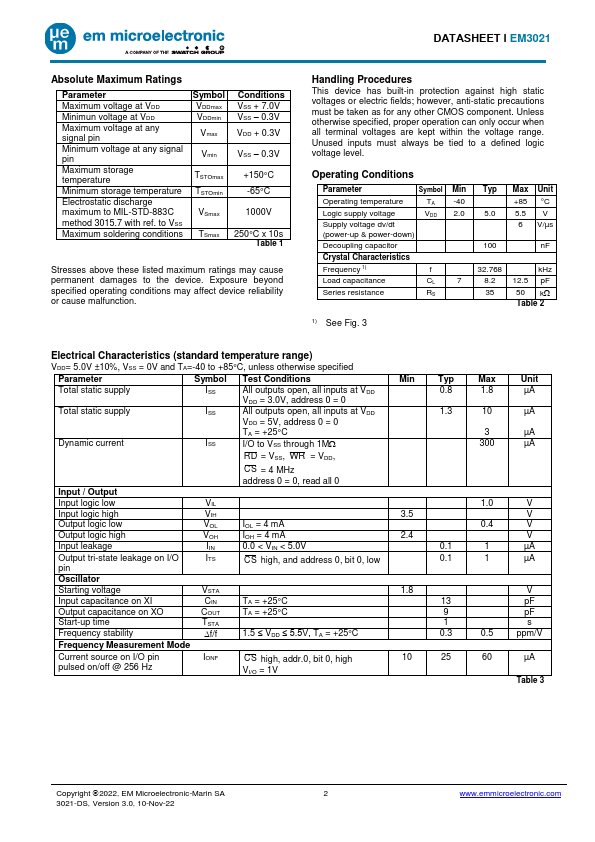

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
EM3021
Manufacturer
EM Microelectronic
File Size
816.77 KB
Datasheet
EM3021-EMMicroelectronic.pdf
Description
Ultra Low Power 1-Bit 32-kHz RTC

Features

*  Supply current typically 800 nA at 3V  50 ns access time with 50 pF load capacitance  Fully operational from 2.0V to 5.5V  No busy states or danger of a clock update while accessing  Serial communication on one line of a standard parallel data bus or over a conventional 3 wire serial interface
