EM3028-C7 Datasheet PDF - EM Microelectronic EXTREME LOW POWER RTC MODULE Specs

EM3028-C7 - EXTREME LOW POWER RTC MODULE

Datasheet Summary

Description

The EM3028-C7 engineered using the in-house analog low power (ALP) technology provides unmatched true ultra-low current consumption of typically 40nA while running on a standard 32’768 Hz tuning fork crystal.

Thus allowing several hours of backup supply using cost effective MLCC capacitors.

Features

I Extreme low power consumption: 40 nA @ 3 V. I Wide operating voltage range: 1.2 V to 5.5 V. I Built-in tuning Fork crystal at 32’768 Hz I Time accuracy: Factory calibrated to ±1 ppm @ 25°C I Non-volatile configuration settings with user programmable offset value. I Configuration stored in EEPROM and mirrored in RAM I Backup Switch and Trickle Charger function. I Provides year, month, date, weekday, hours, minutes and seconds. I Automatic leap year correction; 2000 to 2099 I 32 bit UNIX time co.

Datasheet Details

Part number	EM3028-C7
Manufacturer	EM Microelectronic
File Size	1.44 MB
Description	EXTREME LOW POWER RTC MODULE
Datasheet	EM3028-C7 Datasheet

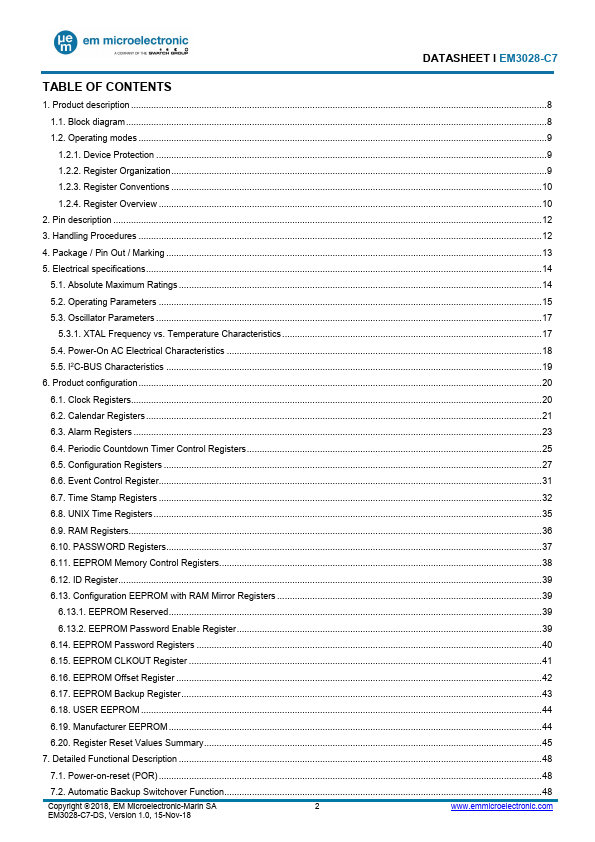

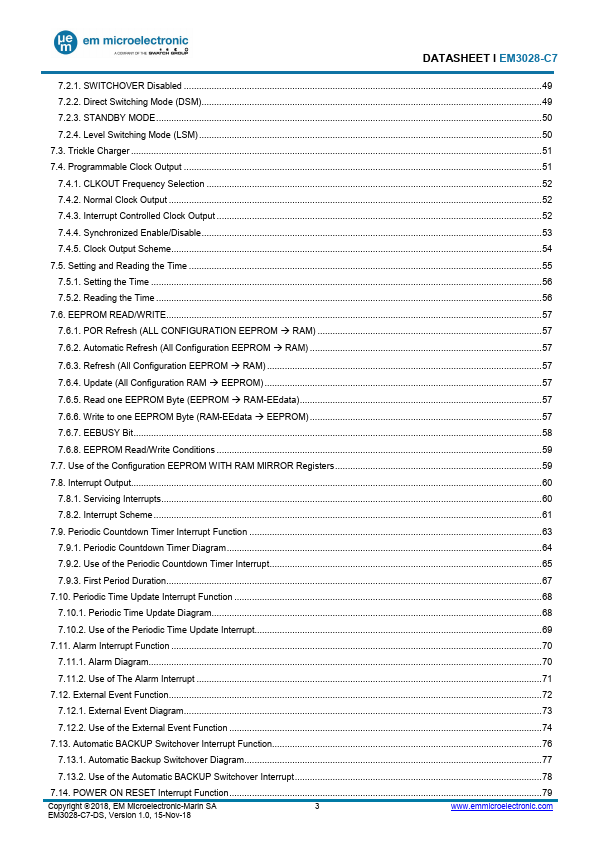

Additional preview pages of the EM3028-C7 datasheet.

📁 Similar Datasheet

EM300X - 2-electrode arrester (EPCOS)

EM30713 - I2C interface ambient light sensor and proximity sensor (Epticore Microelectronics)

EM30718 - I2C Interface Digital Proximity and Ambient Light Sensor (Epticore Microelectronics)

EM30719 - I2C Interface Digital Proximity and Ambient Light Sensor (Epticore Microelectronics)

EM30918 - Long Distance Proximity Sensor / Ambient Light Sensor / IR Sensor (Epticore Microelectronics)

EM3123 - EuroMag Terminal Block (EATON)

EM3123 - Euro-Mag Terminal Blocks 3.50 Centers Modular (Cooper Bussmann)

EM32100 - 8/10 DIGIT LCD DRIVER (ELAN Microelectronics Corp)

EM32117 - 16-DIGIT LCD DRIVER (ELAN Microelectronics Corp)

EM3225 - Euro-Mag Terminal Blocks (Cooper Bussmann)

Full PDF Text Transcription

Click to expand full text

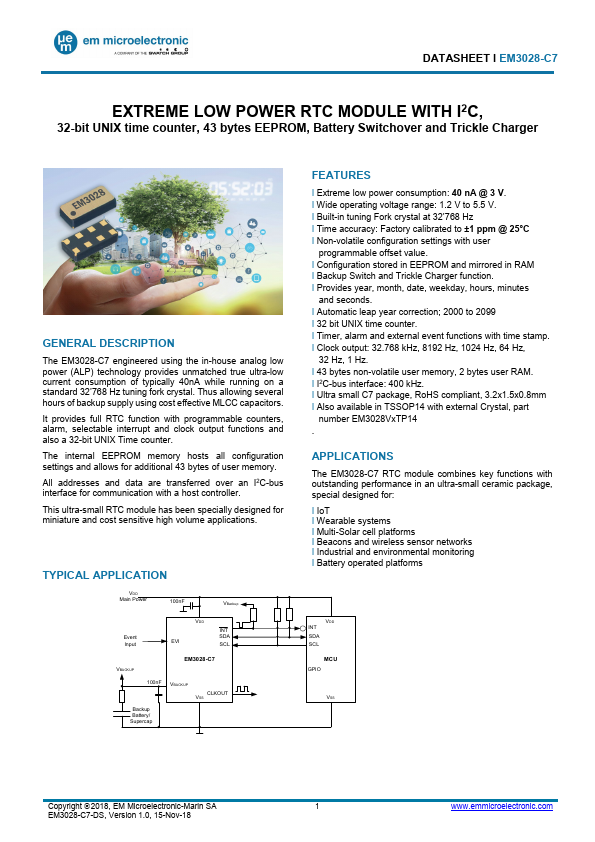

DATASHEET Ɩ EM3028-C7 EXTREME LOW POWER RTC MODULE WITH I2C, 32-bit UNIX time counter, 43 bytes EEPROM, Battery Switchover and Trickle Charger GENERAL DESCRIPTION The EM3028-C7 engineered using the in-house analog low power (ALP) technology provides unmatched true ultra-low current consumption of typically 40nA while running on a standard 32’768 Hz tuning fork crystal. Thus allowing several hours of backup supply using cost effective MLCC capacitors. It provides full RTC function with programmable counters, alarm, selectable interrupt and clock output functions and also a 32-bit UNIX Time counter. The internal EEPROM memory hosts all configuration settings and allows for additional 43 bytes of user memory.
