EM3123 Datasheet - EATON

EM3123 EuroMag Terminal Block

Terminal Blocks: Single Row EuroMag Series Spring & Screw Edge Connectors, One-Sided Boards EuroMag Series PCB Mount Terminal Blocks EM3123 Series EuroMag Terminal Blocks 3.50 Centers; Modular SPECIFICATIONS Rating: 6A, 300V Center Spacing: 0.138” (3.50mm) Wire Range: #16-26 AWG Housing Material: Black Polyamide Type 6/6, 94V0 Contact Material: Tin-Plated Brass Wire Protector: Stainless Steel Screw Size: M2.0 Zinc-Plated Steel Operating Temperature: 105°C (221°F) max., -33°C (-27°F) min. Tor.

EM3123 Features

* dovetails for interlocking to achieve longer lengths Agency Information: File E62622; CE Certified Poles L (mm) 2 7.0 3 10.5 4 14.0 5 17.5 6 21.0 7 24.5 8 28.0 9 31.5 10 35.0 11 38.5 12 42.0 13 45.5 To convert to inches, divide by 25.4 Poles 14 15 16 17 18 19 20 21 22 23

EM3123 Datasheet (860.86 KB)

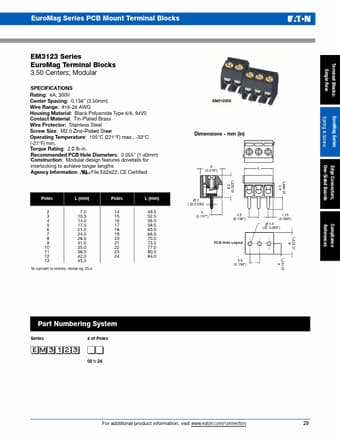

EM3123 Datasheet Preview — Preview of EM3123 PDF

Datasheet Details

Part number:

EM3123

Manufacturer:

EATON

File Size:

860.86 KB

Description:

Euromag terminal block.
