SI3014 - (SI3014/24.38) Global MC97 Silicon DAA

Product Overview

Silicon Laboratories

Datasheet Details

Part number	SI3014
Manufacturer	Silicon Laboratories
File Size	1.64 MB
Description	(SI3014/24.38) Global MC97 Silicon DAA
Datasheet	SI3014 Datasheet

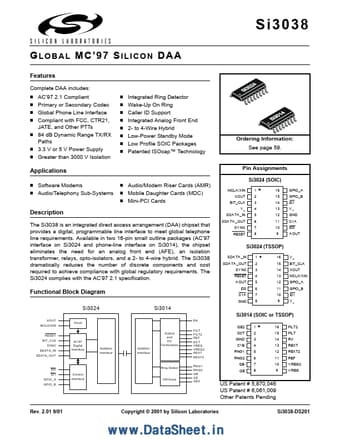

Additional preview pages of the SI3014 datasheet.

Product details

Description

The Si3038 is an integrated direct access arrangement (DAA) chipset that provides a digital, programmable line interface to meet global telephone line requirements.

Features

Complete DAA includes:.
AC’97 2.1 Compliant Primary or Secondary Codec Global Phone Line Interface Compliant with FCC, CTR21, JATE, and Other PTTs 84 dB Dynamic Range TX/RX Paths 3.3 V or 5 V Power Supply Greater than 3000 V Isolation.
Integrated Ring Detector Wake-Up On Ring Caller ID Support Integrated Analog Front End 2- to 4-Wire Hybrid Low-Po.
