Si3050 - PROGRAMMABLE VOICE DAA SOLUTIONS

Si3050 Description

Si3050+Si3011/18/19 PROGRAMMABLE VOICE DAA SOLUTIONS .
The Si3050+Si3011/18/19 Voice DAA chipset provides a highly-programmable and globally-compliant foreign exchange office (FXO) analog interface.

Si3050 Features

* PCM highway data interface
* µ-law/A-law companding
* SPI control interface
* GCI interface
* 80 dB dynamic range TX/RX
* Line voltage monitor
* Loop current monitor
* +6 dBm or +3.2 dBm TX/RX level mode
* Parallel handset detection
* 3 µA on-hook line monit

Si3050 Applications

* DSL IADs
* VoIP gateways
* PBX and IP-PBX systems
* Voice mail systems

📥 Download Datasheet

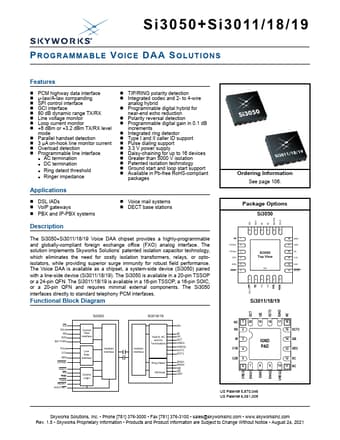

Preview of Si3050 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Si3050
Manufacturer
Skyworks
File Size
1.49 MB
Datasheet
Si3050-Skyworks.pdf
Description
PROGRAMMABLE VOICE DAA SOLUTIONS
