Si3054 - GLOBAL DUAL MODE HD AUDIO/AC97 SILICON DAA

Product Overview

Silicon Laboratories

Datasheet Details

Part number	Si3054
Manufacturer	Silicon Laboratories
File Size	2.10 MB
Description	GLOBAL DUAL MODE HD AUDIO/AC97 SILICON DAA
Datasheet	Si3054 Datasheet

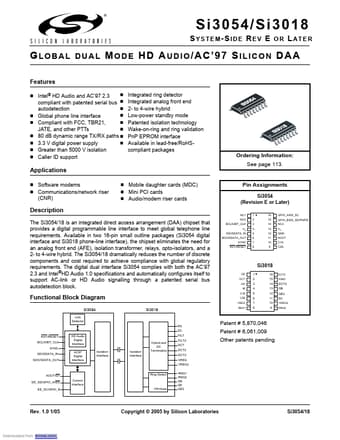

Additional preview pages of the Si3054 datasheet.

Product details

Description

Mobile daughter cards (MDC) Mini PCI cards Audio/modem riser cards The Si3054/18 is an integrated direct access arrangement (DAA) chipset that provides a digital programmable line interface to meet global telephone line requirements.Available in two 16-pin small outline packages (Si3054 digit

Features

Intel® HD Audio and AC’97 2.3 compliant with patented serial bus autodetection Global phone line interface Compliant with FCC, TBR21, JATE, and other PTTs 80 dB dynamic range TX/RX paths 3.3 V digital power supply Greater than 5000 V isolation Caller ID support Integrated ring detector Integrated analog front end 2- to 4-wire hybrid Low-power standby mode Patented isolation technology Wake-on-ring and ring validation PnP EPROM interface Available in lead-free/RoHScompliant packages Applicatio.
