SSM7002EGU N-channel Enhancement-mode Power MOSFET

SSM7002EGU Description

SSM7002EGU N-channel Enhancement-mode Power MOSFET PRODUCT SUMMARY BVDSS R DS(ON) ID 50V 3Ω 250mA Pb-free; RoHS-compliant SOT-323 D .
The SSM7002EGU acheives fast switching performance with low gate charge without a complex drive circuit.

SSM7002EGU Applications

* such as small converters and general load-switching circuits. The SSM7002EGU is supplied in a RoHS-compliant SOT-323 package, which is widely used for low-power commercial and industrial surface mount applications where a small footprint is required. S SOT-323 G ABSOLUTE MAXIMUM RATINGS Symbol VD

📥 Download Datasheet

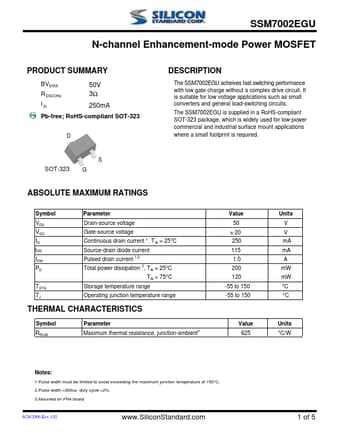

Preview of SSM7002EGU PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSM7002EGU
Manufacturer
Silicon Standard
File Size
751.81 KB
Datasheet
SSM7002EGU-SiliconStandard.pdf
Description
N-channel Enhancement-mode Power MOSFET
