SSM7002KGEN N-channel Enhancement-mode Power MOSFET

SSM7002KGEN Description

SSM7002KGEN N-channel Enhancement-mode Power MOSFET PRODUCT SUMMARY BVDSS R DS(ON) ID 60V 2Ω 640mA Pb-free; RoHS-compliant SOT-23-3 D S SOT-23-3.
The SSM7002KGEN acheives fast switching performance with low gate charge without a complex drive circuit.

SSM7002KGEN Applications

* such as DC/DC converters and general load-switching circuits. The SSM7002KGEN is supplied in an RoHS-compliant SOT-23-3 package, which is widely used for lower power commercial and industrial surface mount applications. The gate has internal ESD protection. ABSOLUTE MAXIMUM RATINGS Symbol VDS VGS

📥 Download Datasheet

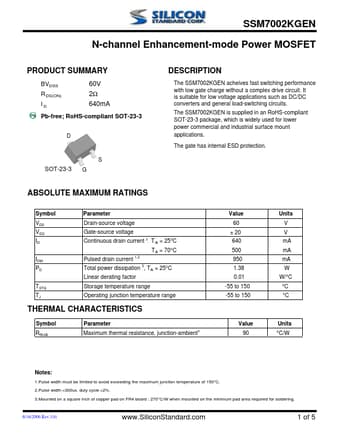

Preview of SSM7002KGEN PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSM7002KGEN
Manufacturer
Silicon Standard
File Size
469.82 KB
Datasheet
SSM7002KGEN-SiliconStandard.pdf
Description
N-channel Enhancement-mode Power MOSFET
