2N5045 Datasheet - Siliconix

2N5045 monolithic dual n-channel JFET

monolithic dual n-channel JFETs designed for . . . H Siliconix Performance Curves NQP See Sedion 4 High Gain Differential Amplifiers BENEFITS Minimum System Error and Calibration 5 mV Offset Maximum (2N5045) Low Drift 5 mV Drift Maximum (2N5045) ABSOLUTE MAXIMUM RATINGS (25°C) TO-71 See Section 6 Gate-Drain or Gate-Source Voltage -50 V Forward Gate Current. . . . . . . . . . . . . . . . . . . . . . .. 30 mA Total Dissipation (25°C Free Air Temp.) 400 mW.

2N5045_Siliconix.pdf

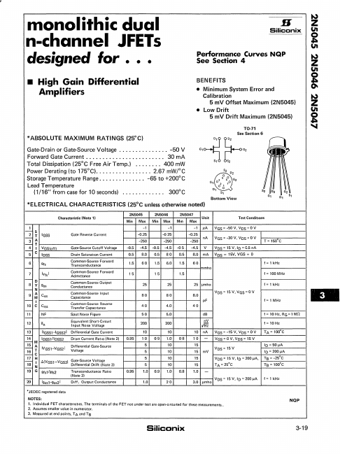

2N5045 Datasheet Preview — Preview of 2N5045 PDF

Datasheet Details

Part number:

2N5045

Manufacturer:

Siliconix

File Size:

71.12 KB

Description:

Monolithic dual n-channel jfet.
