2N5905, 2N5902 Datasheet - Siliconix

2N5905 dual n-channel JFET

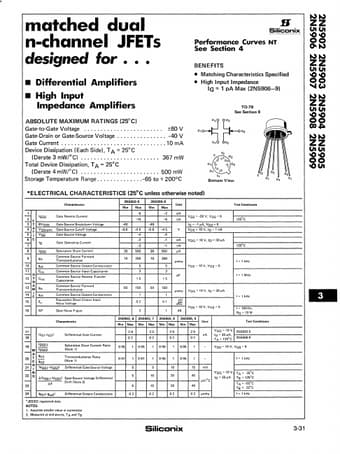

matched dual n-channel JFETs designed for Differential Amplifiers High Input Impedance Amplifiers ABSOLUTE MAXIMUM RATINGS (25°C) Gate-to-Gate Voltage ±80V Gate-Drain or Gate-Source Voltage -40 V Gate Current 10 mA Device Dissipation (Each Side), T A =25°C (Derate 3 mWrC) 367mW Total Device Dissipation, T A =25°C (Derate 4 mWrC) 500mW Storage Temperature Range -65 to +200°C H Siliconix Performance Curves NT See Section 4 BENEFITS <.

2N5902-Siliconix.pdf

This datasheet PDF includes multiple part numbers: 2N5905, 2N5902. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N5905, 2N5902

Manufacturer:

Siliconix

File Size:

79.98 KB

Description:

Dual n-channel jfet.

Note:

This datasheet PDF includes multiple part numbers: 2N5905, 2N5902.
Please refer to the document for exact specifications by model.
