ND2020E, ND2020L Datasheet - Siliconix

ND2020E N-Channel Depletion-Mode MOS Transistors

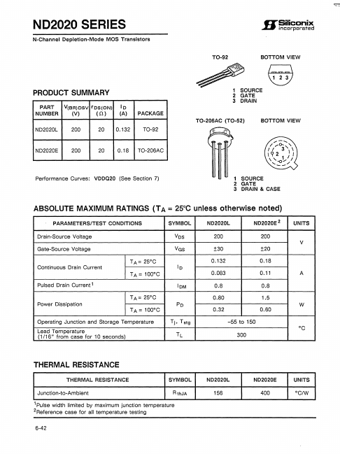

ND2020 SERIES N-Channel Depletion-Mode MOS Transistors PRODUCT SUMMARY PART V(BR)OSV rOS(ON) 10 NUMBER (V) (il) (A) PACKAGE ND2020L 200 20 0.132 TO-92 ND2020E 200 20 0.18 TO-206AC a'Y"Siliconix ~ incorporated TO-92 BOTTOM VIEW ~ 1 SOURCE 2 GATE 3 DRAIN TO-206AC (TO-52) BOTTOM VIEW Performance Curves: VDDQ20 (See Section 7) 1 SOURCE 2 GATE 3 DRAIN & CASE = ABSOLUTE MAXIMUM RATINGS (TA 25°C unless otherwise noted) PARAMETERS/TEST CONDITIONS SYMBOL ND2020L ND2020E 2 Dr.

ND2020L-Siliconix.pdf

ND2020E Datasheet Preview — This datasheet PDF includes multiple part numbers: ND2020E, ND2020L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ND2020E, ND2020L

Manufacturer:

Siliconix

File Size:

98.76 KB

Description:

N-channel depletion-mode mos transistors.

Note:

This datasheet PDF includes multiple part numbers: ND2020E, ND2020L.
Please refer to the document for exact specifications by model.
