P1086 - P-Channel JFETs

Features

  • a TO-92 package which is available with various lead-forms and/or tape and reel options. (See Section 8.) For further design information please consult the typical performance curves PSCIA which are located in Section 7. PART NUMBER P10B6 P10B7 VOS(OFF) rds(ON) IO(OFF) MAX MAX TYP (V) (a) (pA) 10 75 -10 5 150 -10 tON TYP (ns) 25 25 TO-92 BOTTOM VIEW.

📥 Download Datasheet

Datasheet preview – P1086

Datasheet Details

Part number P1086
Manufacturer Siliconix
File Size 97.99 KB
Description P-Channel JFETs
Datasheet download datasheet P1086 Datasheet
Additional preview pages of the P1086 datasheet.

📁 Similar Datasheet

  • P1086 - P-Channel Switch (Fairchild Semiconductor)
  • P1086 - P-Channel JFET (InterFET)
  • P1082-03 - CdS photoconductive cell (Hamamatsu Corporation)
  • P1087 - P-Channel Switch (Fairchild Semiconductor)
  • P1087 - P-Channel JFET (InterFET)
  • P100 - PASSIVATED ASSEMBLED CIRCUIT ELEMENTS (International Rectifier)
  • P1000A - Standard Recovery Rectifier Diodes (Diotec Semiconductor)
  • P1000A - Standard silicon rectifier diode (Semikron International)
  • P1000B - Standard Recovery Rectifier Diodes (Diotec Semiconductor)
  • P1000B - Standard silicon rectifier diode (Semikron International)
Other Datasheets by Siliconix

Full PDF Text Transcription

Click to expand full text

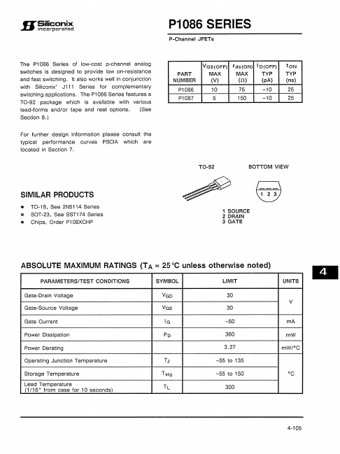

tcrSiliconix ~ incorporated P1086 SERIES P-Channel JFETs The P1086 Series of low-cost p-channel analog switches is designed to provide low on-resistance and fast switching. It also works well in conjunction with Siliconix' J111 Series for complementary switching applications. The P1086 Series features a TO-92 package which is available with various lead-forms and/or tape and reel options. (See Section 8.) For further design information please consult the typical performance curves PSCIA which are located in Section 7. PART NUMBER P10B6 P10B7 VOS(OFF) rds(ON) IO(OFF) MAX MAX TYP (V) (a) (pA) 10 75 -10 5 150 -10 tON TYP (ns) 25 25 TO-92 BOTTOM VIEW SIMILAR PRODUCTS • TO-1B. See 2N5114 Series CI SOT-23. See SST174 Series • Chips.
