U200 Datasheet - Siliconix

U200 n-channel JFET

n-channel JFETs designed for Analog Switches Commutators Choppers H Siliconix Performance Curves NCB See Section 4 BENEFITS Low Insertion Loss rOS(on) < 50 on (U202) Good Off-Isolation 10(off) < 1 nA ABSOLUTE MAXIMUM RATINGS (25°C) Gate-Drain or Gate-Source Voltage -30 V Gate Current SOmA Total Device Dissipation at 25°C Case Temperature (Derate 10 mWrC) 1.8W Storage Temperature Range -65 to +200°C Lea.

U200 Datasheet (52.64 KB)

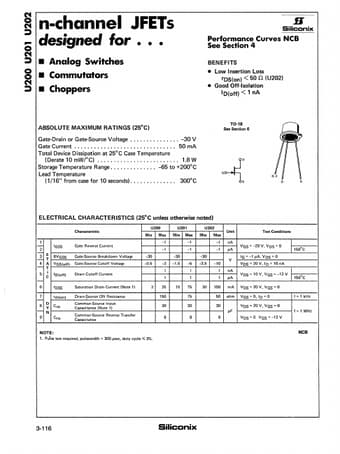

U200 Datasheet Preview — Preview of U200 PDF

Datasheet Details

Part number:

U200

Manufacturer:

Siliconix

File Size:

52.64 KB

Description:

N-channel jfet.
