U2010B Phase Control Circuit for Current Feedback

U2010B Description

U2010B Phase Control Circuit for Current Feedback .
The U2010B is designed as a phase-control circuit in bipolar technology.

U2010B Features

* D Full wave current sensing D Mains supply variation compensated D Programmable load-current limitation with over- and high-load output D Internal supply voltage monitoring D Current requirement 3 mA D Temperature compensated reference voltage v D Variable soft-start D Voltage and current synchro

📥 Download Datasheet

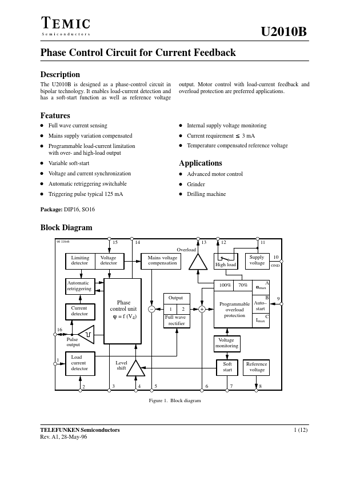

Preview of U2010B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U2010B
Manufacturer
TEMIC Semiconductors
File Size
202.78 KB
Datasheet
U2010B_TEMICSemiconductors.pdf
Description
Phase Control Circuit for Current Feedback
