VN1210L Datasheet - Siliconix

VN1210L N-Channel Enhancement-Mode MOS Transistors

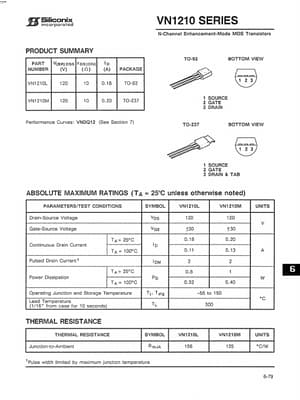

fCrSiliconix ~ incorporated VN1210 SERIES N-Channel Enhancement-Mode MOS Transistors PRODUCT SUMMARY PART V(BR)OSS rOS(ON) 10 NUMBER (V) (il) (A) PACKAGE VN1210L 120 10 0.18 TO-92 VN1210M 120 10 0.20 TO-237 Performance Curves: VNDQ12 (See Section 7) TO-92 BOTTOM VIEW 1 SOURCE 2 GATE 3 DRAIN TO-237 BOTTOM VIEW ~ ~ 1 SOURCE 2 GATE 3 DRAIN & TAB ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) PARAMETERSITEST CONDITIONS SYMBOL Drain-Source Voltage VOS Gate-So.

VN1210L-Siliconix.pdf

Preview of VN1210L PDF
VN1210L Datasheet Preview Page 2

Datasheet Details

Part number:

VN1210L

Manufacturer:

Siliconix

File Size:

94.88 KB

Description:

N-channel enhancement-mode mos transistors.
