VN1206M, VN1206L Datasheet - Siliconix

VN1206M N-Channel MOSFET

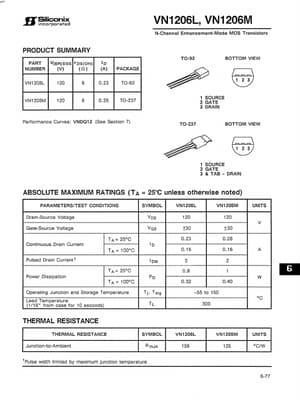

zr:S. iliconix incorporated PRODUCT SUMMARY PART V(BR)OSS rOS(ON) 10 NUMBER (V) (n) (A) PACKAGE VN1206L 120 6 0.23 TO-92 VN1206M 120 6 0.26 TO-237 Performance Curves: VNDQ12 (See Section 7) VN1206L, VN1206M N-Channel Enhancement-Mode MOS Transistors TO-92 BOTTOM VIEW 1 SOURCE 2 GATE 3 DRAIN TO-237 BOTTOM VIEW 1 SOURCE 2 GATE 3 & TAB - DRAIN ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) PARAMETERS/TEST CONDITIONS SYMBOL Drain-Source Voltage Vos Gate-Sou.

VN1206L-Siliconix.pdf

VN1206M Datasheet Preview — This datasheet PDF includes multiple part numbers: VN1206M, VN1206L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VN1206M, VN1206L

Manufacturer:

Siliconix

File Size:

94.63 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: VN1206M, VN1206L.
Please refer to the document for exact specifications by model.
