BSS138C Datasheet - Silikron

BSS138C, MOSFET

Main Product Characteristics: VDSS 60V RDS(on) 2.2Ω (Max) ID 0.3A SOT-23 BSS138C Pin Assignments Schematic Diagram .
It utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rat.

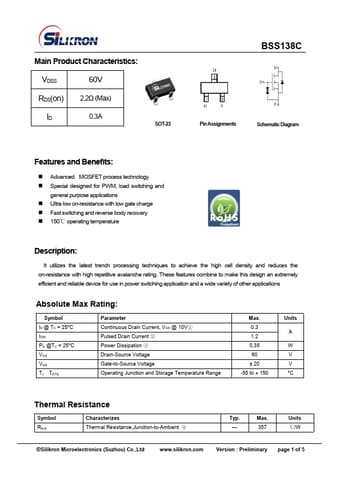

datasheet Preview Page 1 from Datasheet4u.com

BSS138C-Silikron.pdf

BSS138C Datasheet Preview — Preview of BSS138C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number:

BSS138C

Manufacturer:

Silikron

File Size:

376.72 KB

Description:

MOSFET

Features

* Advanced MOSFET process technology

Applications

* Ultra low on-resistance with low gate charge
* Fast switching and reverse body recovery
