SSF2301UP - MOSFET

SSF2301UP Description

Main Product Characteristics: VDSS -20V RDS(on) 59mΩ(typ.) ID -2.6A SOT-23 .
It utilizes the latest processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating.

SSF2301UP Features

* Advanced MOSFET process technology

SSF2301UP Applications

* Ultra low on-resistance with low gate charge
* Fast switching and reverse body recovery

📥 Download Datasheet

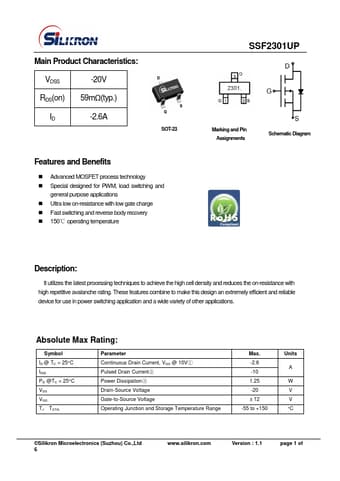

Preview of SSF2301UP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSF2301UP
Manufacturer
Silikron
File Size
1.12 MB
Datasheet
SSF2301UP-Silikron.pdf
Description
MOSFET
