SSF7508 - N-Channel MOSFET

General Description

It utilizes the latest processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating.

Key Features

  • Advanced MOSFET process technology.
  • Special designed for PWM, load switching and general purpose.

📥 Download Datasheet

Datasheet Details

Part number SSF7508
Manufacturer Silikron
File Size 486.01 KB
Description N-Channel MOSFET
Datasheet download datasheet SSF7508 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SSF7508 N-Channel MOSFET GOOD-ARK
SSF7507 75V N-Channel MOSFET GOOD-ARK
SSF7509 75V N-Channel MOSFET GOOD-ARK
SSF7509A MOSFET Silikron Semiconductor
SSF7509J7 MOSFET Silikron Semiconductor

Other Datasheets by Silikron

Part Number Description
SSF7508A MOSFET
SSF7504 MOSFET
SSF7504A MOSFET
SSF7504A7 MOSFET
SSF7504H MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

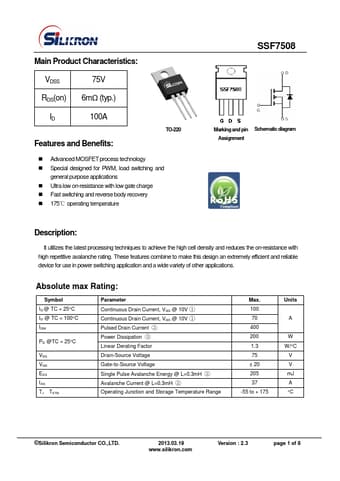

Main Product Characteristics: VDSS RDS(on) 75V 6mΩ (typ.) ID 100A TO-220 Features and Benefits:  Advanced MOSFET process technology  Special designed for PWM, load switching and general purpose applications  Ultra low on-resistance with low gate charge  Fast switching and reverse body recovery  175℃ operating temperature SSF7508 Marking and pin Schematic diagram Assignment Description: It utilizes the latest processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.
